My 1970 Corvette Stingray Coupe
Bought from a junk yard and restored over 18 months






BRAND NEW 383 STROKER Engine !!!!
May 2010

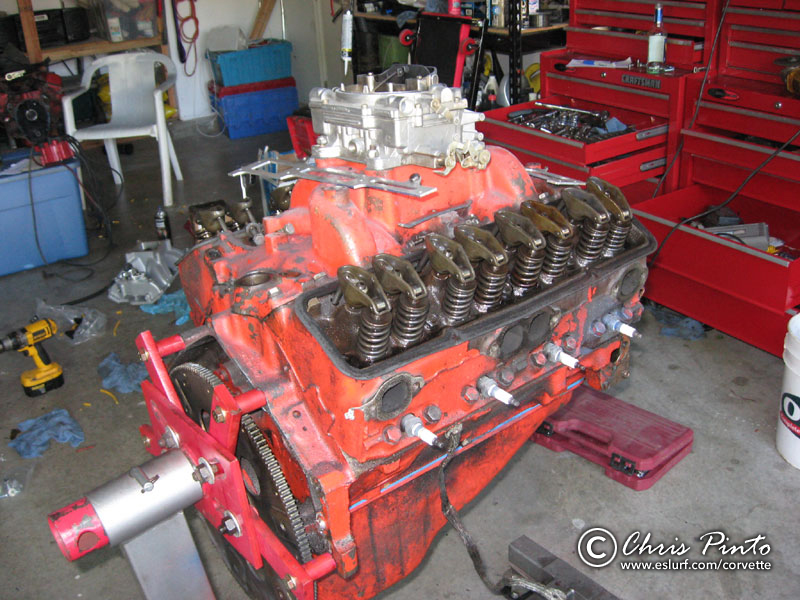

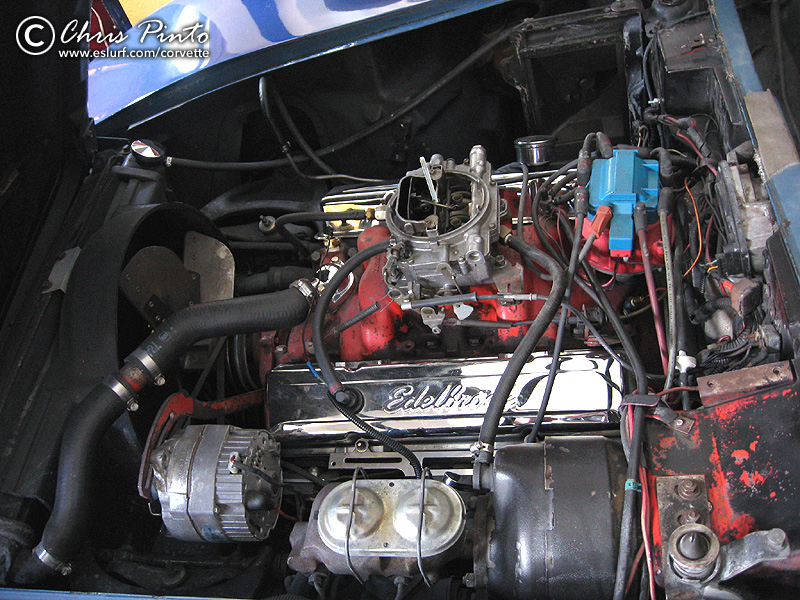

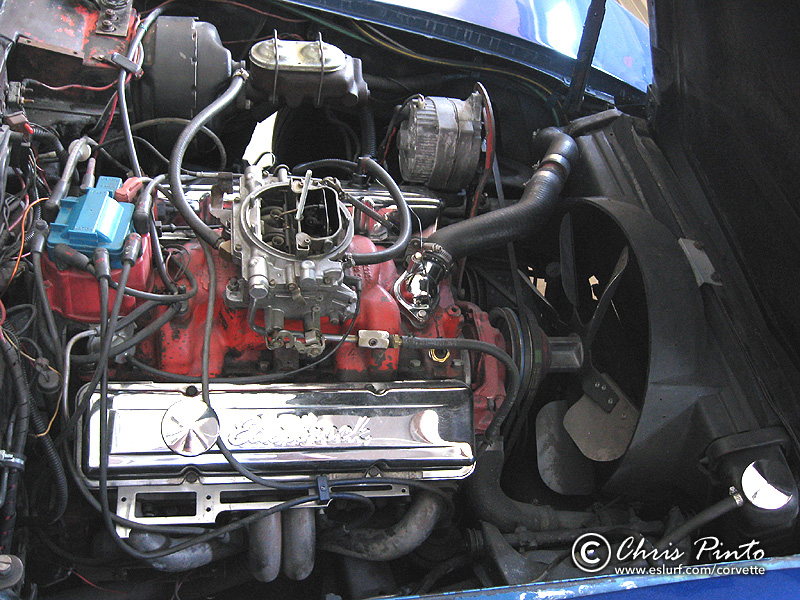

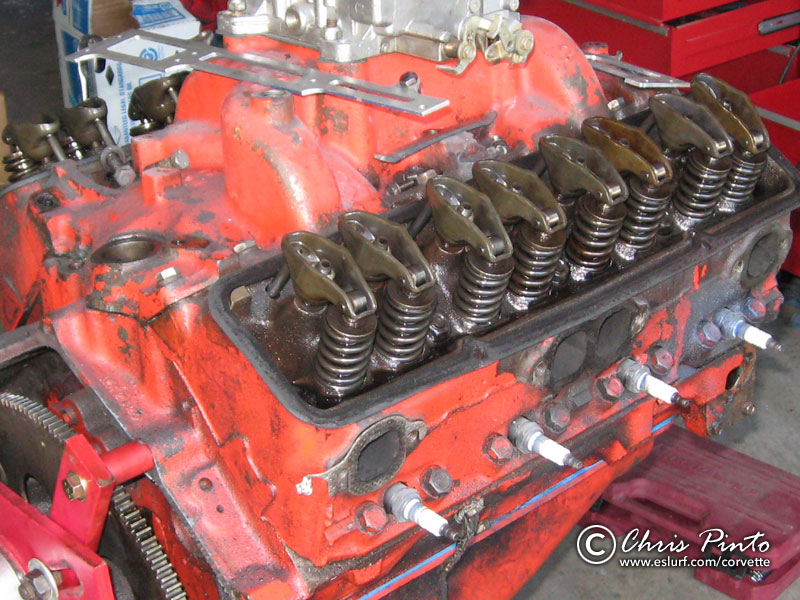

The 350 had some odd knocking noises coming out of it:
Took it to a garage in town and was told that I broke a piston rod/bearing. One of the cylinders was misfiring. Engine pretty much sounded like shit !!!

So I decided to spend more $$$$ on the one thing thought was ok with this car. The motor. Oh well. You only live once...


Atleast I will not have a little 350 anymore.

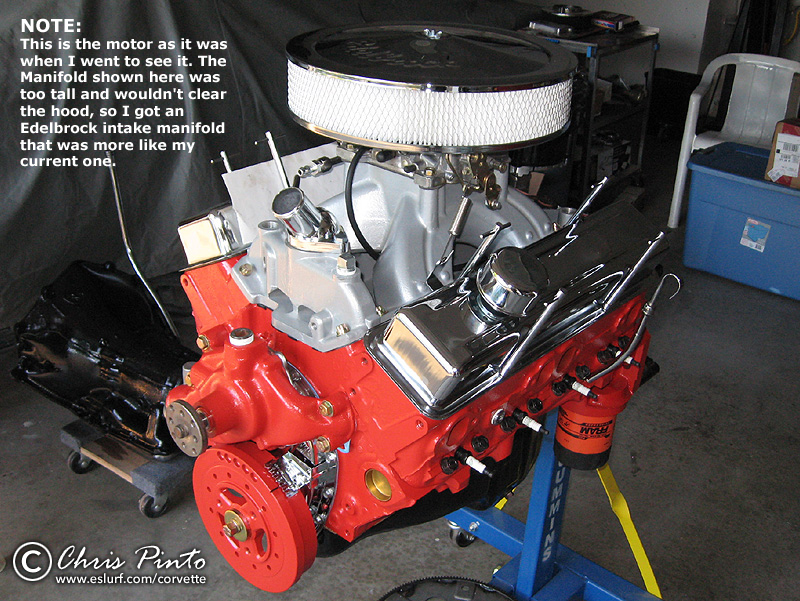

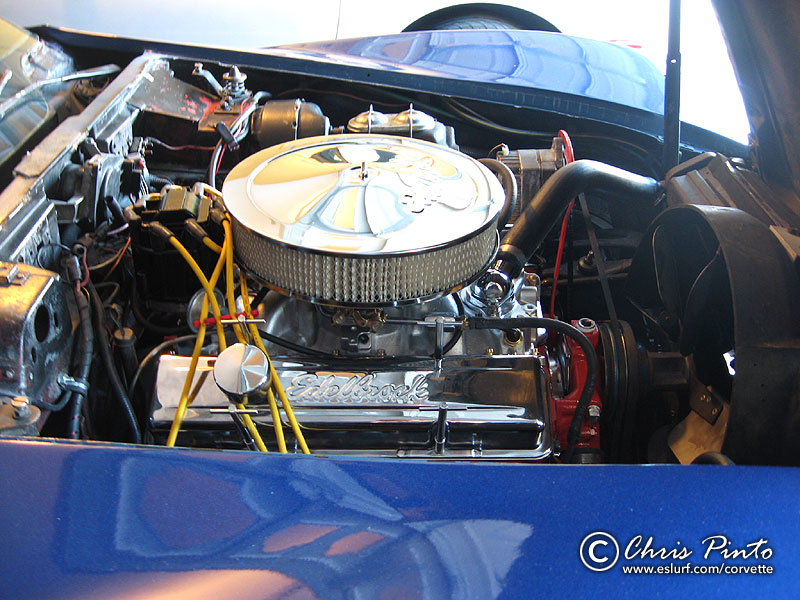

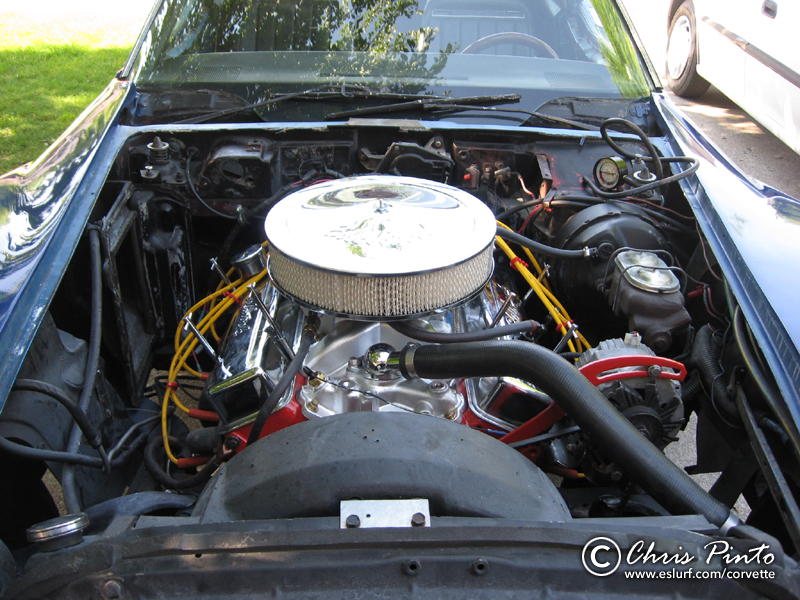

I decided to install a 383, 400+HP Stroker Engine!!

Finally giving the old beast the power it deserves !

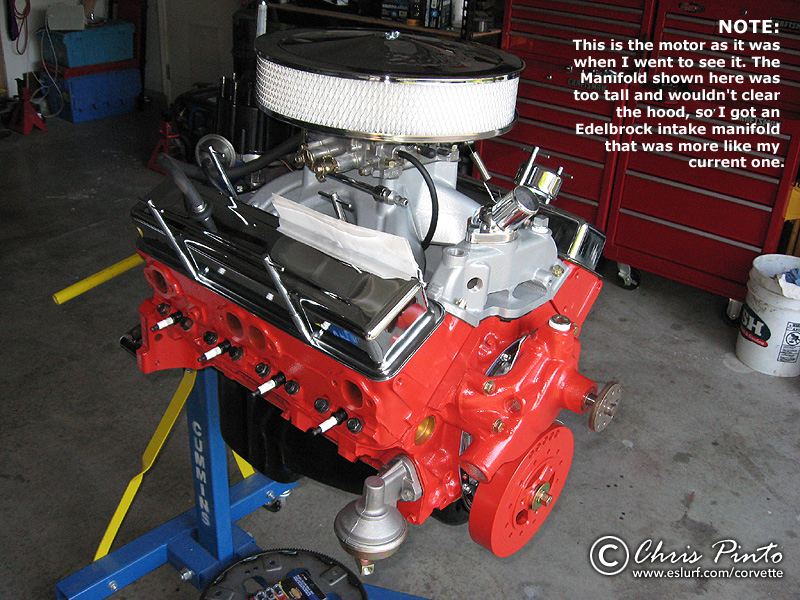

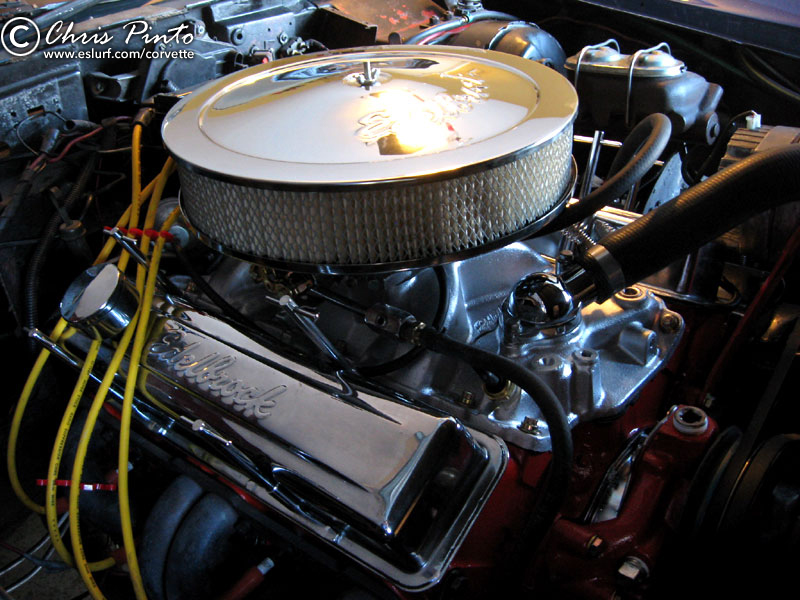

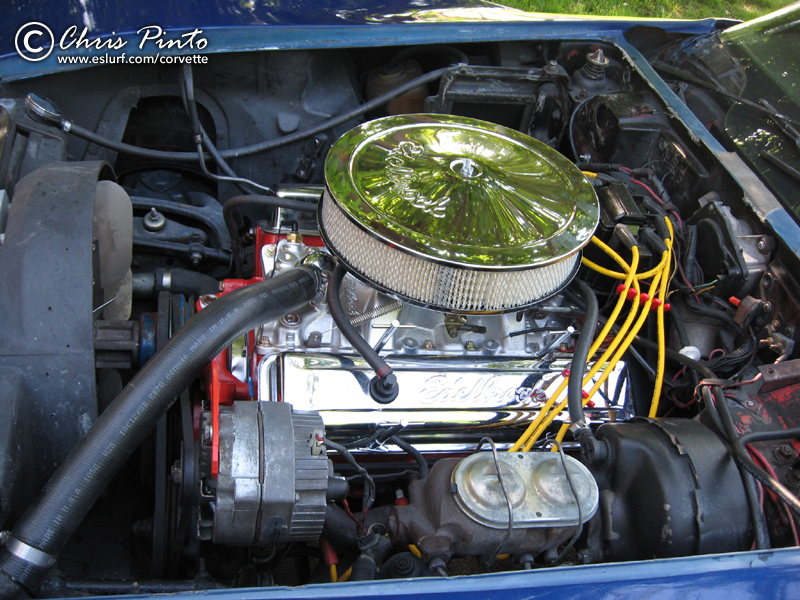

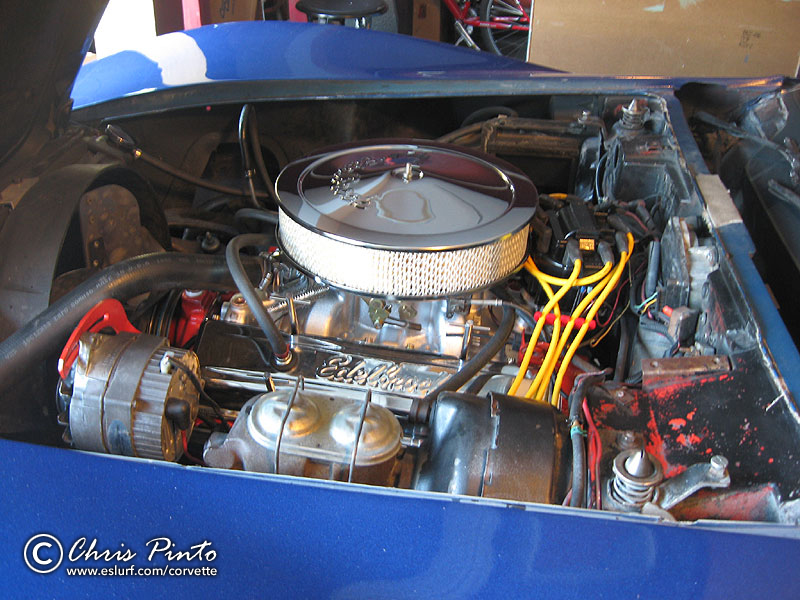

Here's a little something about the new engine I am getting put in, Along with a few Pictures..


  • 383 Stroker, 400+ HP

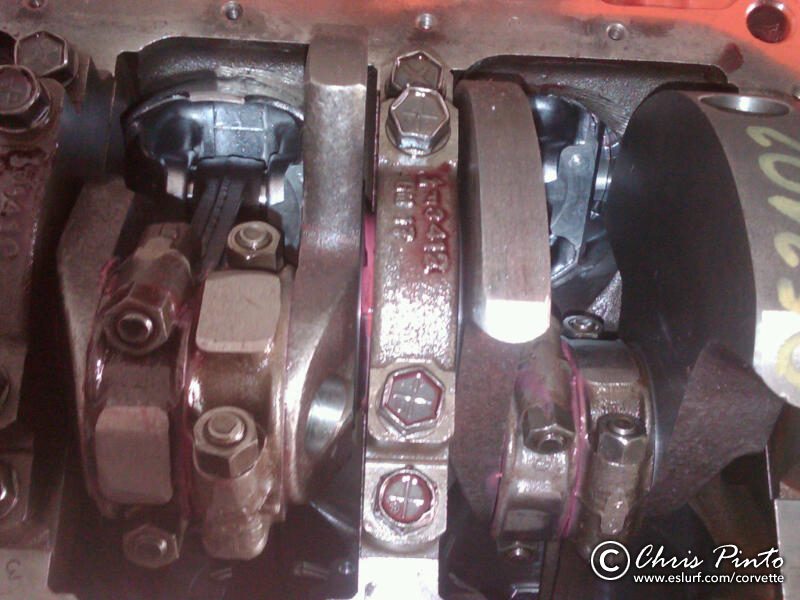

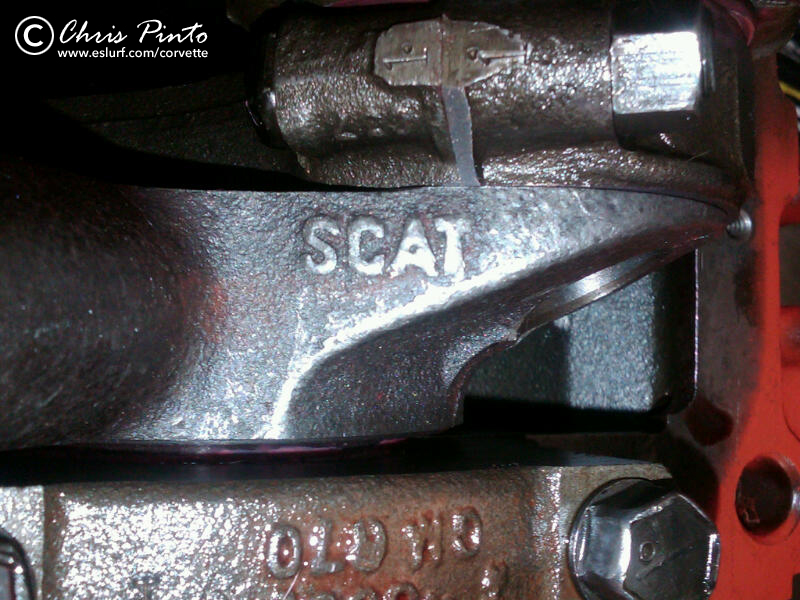

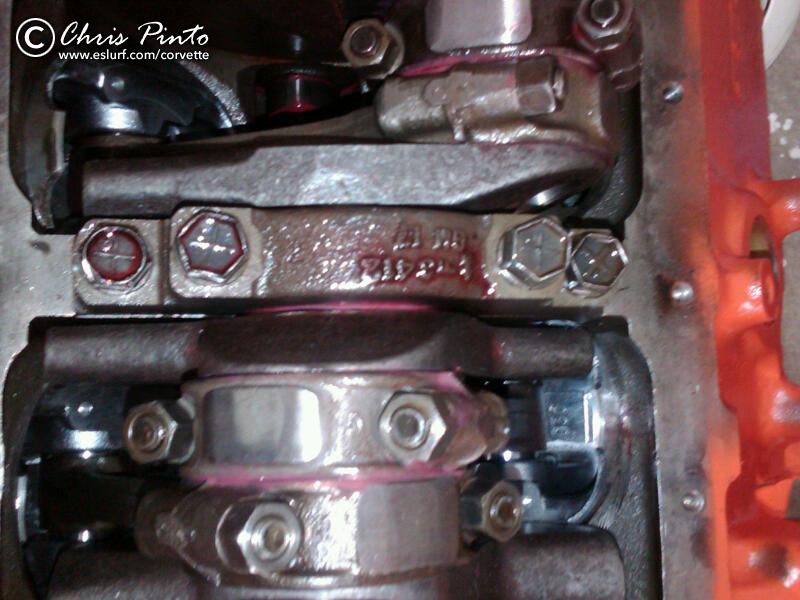

  • SCAT 383 stroker bottom end
  • 4 bolt main.

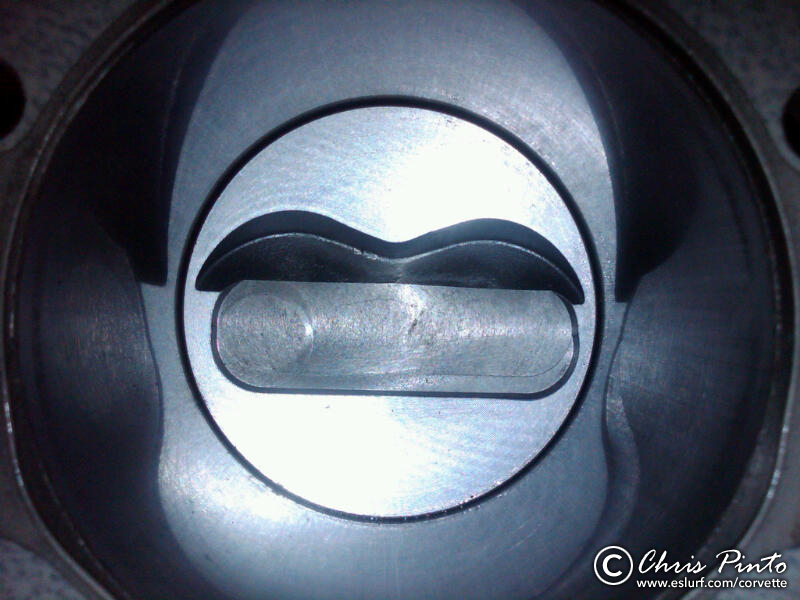

  • 9.5 to 1 pistons.

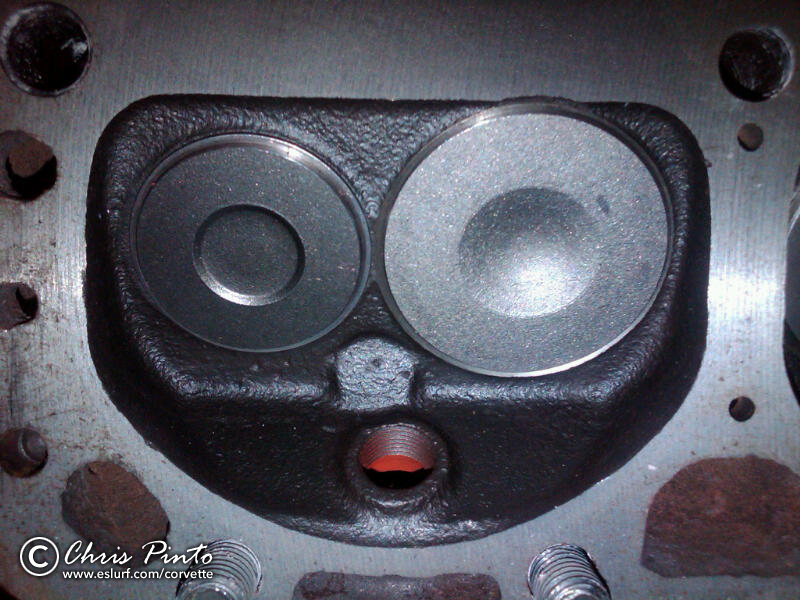

  • The heads are GM "Fast Burn" heads with 1.60 intake and 2.02 exhaust valves. They have had a mild pocket port and polish to the exhaust ports and the intake ports have been gasket matched.
  • Brand new valves, guides, seals, seats, springs,
    retainers etc. sitting on a 3 angle valve job.
  • Custom grind cam on small lobe center for stroker crank clearance.
  • Edelbrock double roller timing set
  • Large harmonic balance



  • Edelbrock intake manifold
  • Edelbrock 750 carb
  • Edelbrock 14" air cleaner

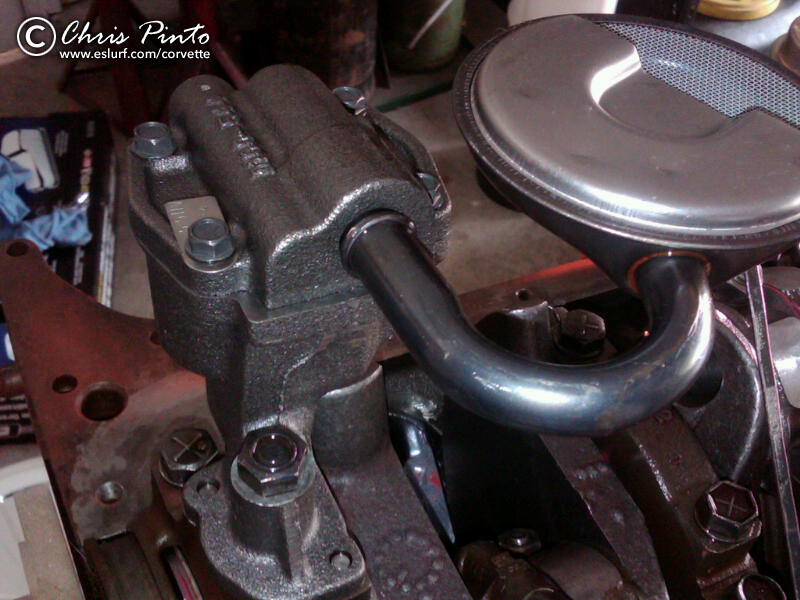

  • New oil pump
  • New fuel pump
  • Mr. Gasket dress up kit
  • new thermostat 180 degree and new housing
  • new flex plate
  • new flex plate bolts
  • metal exhaust manifold gaskets





Here is some Info on the Cam
Valve opening = 1.1 ' BTDC (before top dead center)
Lobe center = 110.4 'ATDC (after top dead center)
Valve closure. = 41.5 ' ABDC (""bottom dead center)
Duration. = 226.6 crank degrees @ .050
Max cam lift. = .29429 inches
Net valve lift. = .44144 inches
Lobe "area". = 23.66. IN* DEG

Exhaust: Valve opening = 41.9 ' BBDC
Lobe center. = 110.4 'BTDCValve closure. = 2.7 ' ATDC
Duration = 224.6 Crank DEG @.050
Max cam lift. = .29551 Inches
Net valve lift. = .44327 Inches
Lobe "area". = 24.02 IN*DEG
Intake: 294 lift, 222 duration, 110 center line
Exhaust: 295 lift, 224 duration, 110 center line
